HOME   >  PRODUCTS   >  TRACK LIGHT
GUIDE LAMP
GD19C20F

20W SMD LED  track light,

 len 15° / 24° / 38°/45°/60° single

Lumens2770Lm  White/Black

Family Size
Downloads

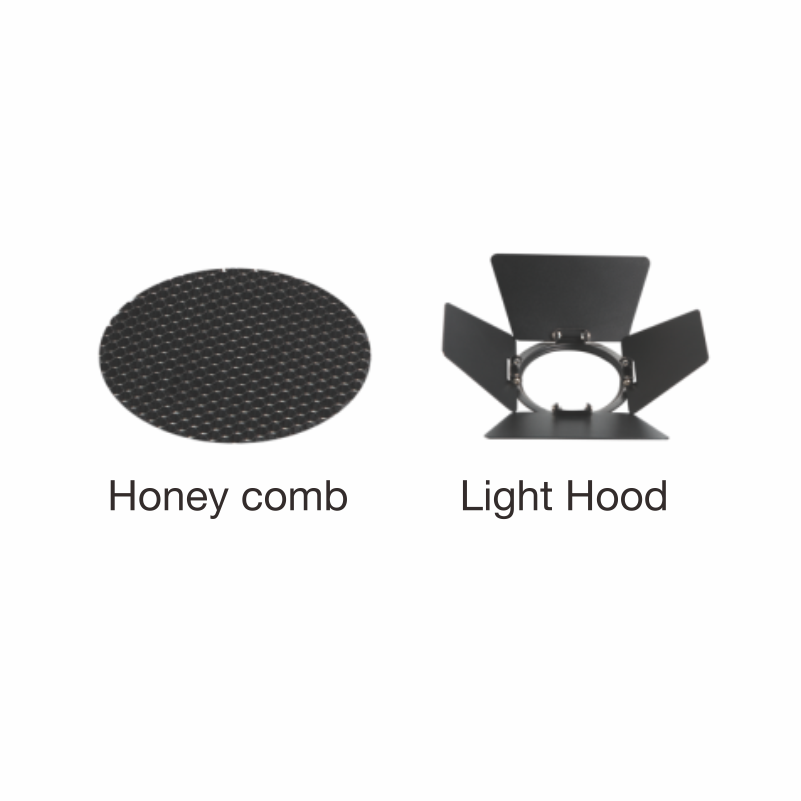

ACCESSORY
PRODUCT SPECIFICATION
MODEL
VOLTAGE
LED CHIP
CCT
CRI
LUMINOUS FLUX
BEAM ANGEL
INPUT VOLTAGE
DRIVER
SIZE(mm)
GD19C20F
20W
COB
3000K/4000K/5000K
80/90
1855LM
15°/24°/38°/45°/60°
180-265VAC/50-60Hz
NON-DIMMABLE/TRIAC/
1-10V/DALI
∅75X110
GD19C30F
30W
COB
3000K/4000K/5000K
80/90
2760LM
15°/24°/38°/45°/60°
180-265VAC/50-60Hz
NON-DIMMABLE/TRIAC/
1-10V/DALI
∅90X115

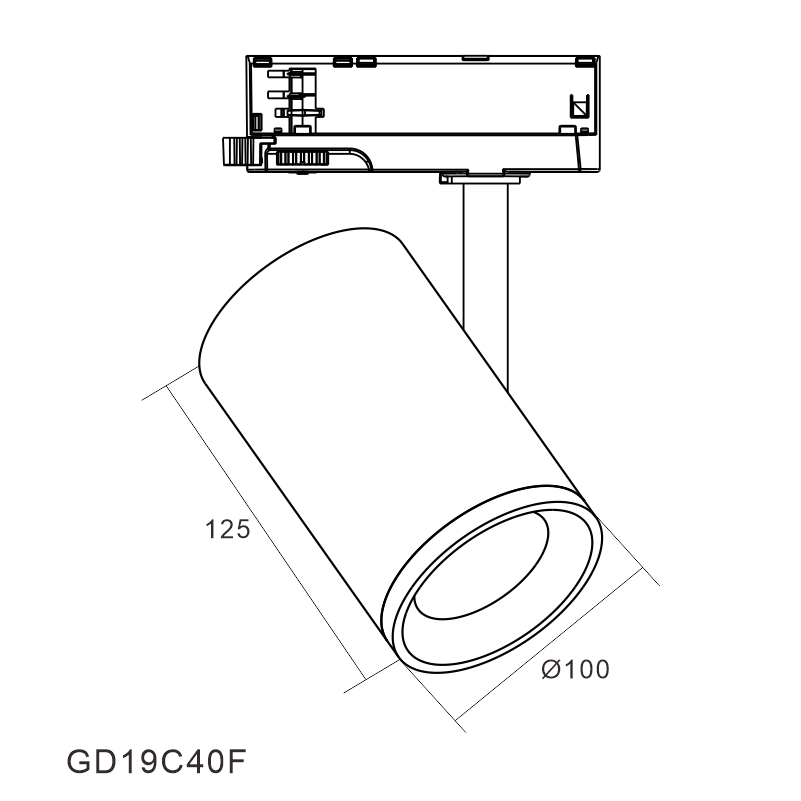

GD19C40F
40W
COB
3000K/4000K/5000K
80/90
3835LM
15°/24°/38°/45°/60°
180-265VAC/50-60Hz
NON-DIMMABLE/TRIAC/
1-10V/DALI
∅100X125

PRODUCT FAMILY
